SAE J524 Tubes | Seamless Carbon Steel Tube Supplier

Q: Q1: What’s the difference between SAE J524 and ASTM A179 tubing?

A: SAE J524 is engineered for hydraulic systems, offering superior cleanliness and formability. ASTM A179, on the other hand, is primarily used in heat exchangers and condensers where thermal transfer is key.

Q: Q2: Can SAE J524 tubes handle high-pressure hydraulic systems?

A: Yes. SAE J524 tubes are seamless and have excellent mechanical strength, making them ideal for use in high-pressure hydraulic systems without the risk of leaks or structural failure.

Q: Q3: Do you offer custom lengths and sizes?

A: Yes, we provide tubes in custom sizes and lengths tailored to your specific project or application needs, ensuring perfect fit and performance across diverse industries.

Q: Q4: Is third-party inspection available?

A: Absolutely. We can arrange third-party inspections as per customer requests to ensure our SAE J524 tubes meet all specified standards and quality parameters.

Q: Q5: What is the typical lead time for delivery?

A: We stock standard sizes for quick dispatch and offer fast delivery on custom orders. Delivery time depends on order volume, customization level, and inspection needs.

Your Trusted Source for the Best Quality Stainless Steel Pipes in India

Solitaire Overseas is a reliable and prestigious manufacturer, supplier, and exporter of SAE J524 seamless low carbon steel tubes used for hydraulic systems and known for their cleanliness, fabrication ease, and good tolerances. These tubes are manufactured to the necessary specifications and provide better formability for bending, flaring and forming applications based on inhibits.

The tubes were produced by cold drawing and subsequently annealing for the highest quality finish, with a smooth high-bright finish and constant mechanical properties throughout the length of the tube. Solitaire Overseas fabricated SAE J524 tubing is a leak-proof tubing option for high-pressure applications in the automotive, aerospace, hydraulic machinery and fuel transmission industry. Our advanced engineering capabilities, our quality controls, and our specialization in the tubing solutions make us a preferred tubing partner for specialty applications across many industries.

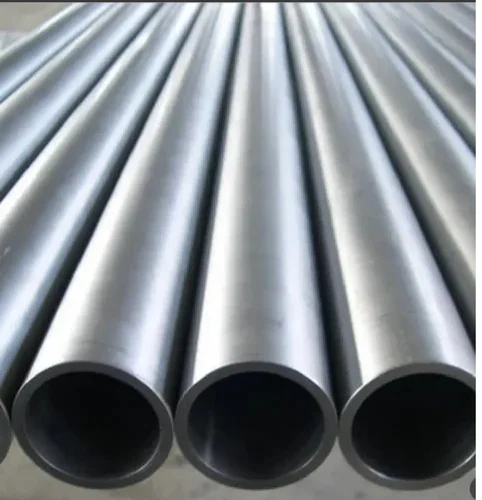

What is SAE J524 Tubing?

SAE J524 is a specification for seamless, low carbon, steel tubes produced for hydraulic and fuel service. These tubes are cold drawn and annealed to obtain uniform mechanical properties, have a smooth internal surface and a certain amount of ductility that would allow severe forming operations, such as bending, flaring and manipulation, without failure of the tube structure.

SAE J524 tubing can be used for hydraulic lines, fuel systems, brake lines, and any number of critical applications where dimensional tolerances, cleanliness, and reliability are favored.

SAE J524 Tubes – Technical Specifications

Specification	Details
Standard	SAE J524
Material	Low-Carbon Steel
Manufacturing Process	Seamless, Cold Drawn, Annealed
Size Range	1/8” OD to 2” OD (custom sizes available)
Wall Thickness	0.028” to 0.120” (as per requirements)
Length Options	Single Random, Double Random, Cut Lengths
End Finish	Plain, Beveled, or Threaded
Surface Finish	Bright Annealed, Oiled
Tensile Strength	Approx. 415 MPa
Yield Strength	Approx. 240 MPa
Testing	NDT, Hydro Test, Dimensional Inspection
Applications	Hydraulic, Brake, Fuel Lines, Instrumentation

Industry Standards & Certifications Of J524 Tubes

At Solitaire Overseas, we adhere to international standards and maintain certifications that guarantee our commitment to quality:

Standard / Certification	Compliance
SAE J524	✔️
ASTM A179	✔️
ISO 9001	✔️
ISO 14001	✔️

J524 Tubes Chemical Composition (Typical %)

Element	Content (%)
Carbon (C)	0.10 max
Manganese (Mn)	0.50 max
Phosphorus (P)	0.035 max
Sulfur (S)	0.035 max
Iron (Fe)	Balance

Mechanical Properties of SAE J524 Tubes

Property	Value
Tensile Strength	≥ 415 MPa
Yield Strength	≥ 240 MPa
Elongation	≥ 15%
Hardness	≤ 72 HRB

Key Features & Advantages of J524 Tubes

Superior Formability: Designed for easy bending, flaring, and forming without cracking.
Bright & Clean Finish: Ideal for hydraulic applications requiring internal cleanliness.
Consistent Performance: Uniform mechanical properties ensure long-term reliability.
Application Versatility: Suitable for a wide range of industrial and automotive systems.

Typical Applications of SAE J524 Tubes

SAE J524 seamless tubes are extensively used in:

Hydraulic Lines
Brake Lines
Fuel Lines
Instrumentation Tubing
Automotive & Aerospace Systems
Lubrication and Cooling Systems

Why Choose Solitaire Overseas for SAE J524 Tubing?

Solitaire Overseas combines technical know-how, manufacturing, and excellent customer service to provide high-quality SAE J524 seamless tubes. We put each tube through a strict quality testing regime for critical applications. With our ability to produce standards or custom tubes to customer specifications, speedy lead times, and ability to meet international specifications, buyers around the world can enjoy getting their products from us. Whether your hydraulic application requires standard or custom hydraulic tubes, we are here to get you your products according to your specifications, quickly, high quality and precision.

Frequently Asked Questions (FAQ)

What’s the difference between SAE J524 and ASTM A179 tubing?

SAE J524 is engineered for hydraulic systems, offering superior cleanliness and formability. ASTM A179, on the other hand, is primarily used in heat exchangers and condensers where thermal transfer is key.

Can SAE J524 tubes handle high-pressure hydraulic systems?

Yes. SAE J524 tubes are seamless and have excellent mechanical strength, making them ideal for use in high-pressure hydraulic systems without the risk of leaks or structural failure.

Do you offer custom lengths and sizes?

Yes, we provide tubes in custom sizes and lengths tailored to your specific project or application needs, ensuring perfect fit and performance across diverse industries.

Is third-party inspection available?

Absolutely. We can arrange third-party inspections as per customer requests to ensure our SAE J524 tubes meet all specified standards and quality parameters.

What is the typical lead time for delivery?

We stock standard sizes for quick dispatch and offer fast delivery on custom orders. Delivery time depends on order volume, customization level, and inspection needs.
