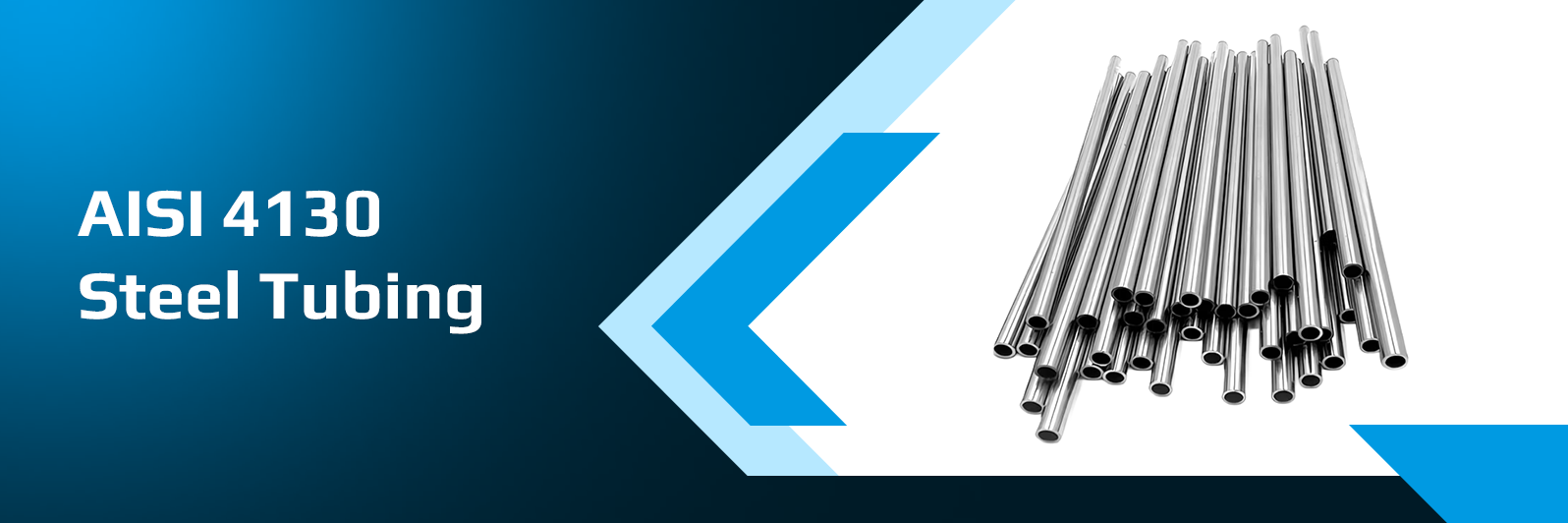

SAE 4130 & AISI 4130 Steel Tubing

AISI 4130 Alloy Steel Seamless Pipes & SAE 4130 Manufacturers & Suppliers

AISI also known as SAE 4130 is low-alloy stainless steel that contains molybdenum and chromium to strengthen the steel. The steel is strong and has excellent toughness, weldability, and Machinability. AISI/ SAE 4130 Grade is a various alloy with good resistance to atmospheric corrosion and durability.
Solitaire Overseas is a prominent manufacturer and supplier of AISI 4130 tubing from Mumbai, India. SAE gr 4130 tube has a high-quality fine-grain steel structure fabrication method that significantly increases the durability of every level and gives the best thickness and strength in both the transverse and longitudinal directions. The hot-working process of AISI 4130 tubing may be performed at temperatures ranging from 816 to 1093 degrees C (1500 to 2000 degrees F). AISI 4130 tubing is cold-worked using standard methods and annealed at 843°C (1550 degrees F) followed by air cooling to 482° C (900 degrees F).
AISI 4130 Tubing has been manufactured to the exact tolerances of the industry. It is also double-certified to ensure it conforms to the most current offshore drilling standards. AISI 4130 pipes are found in a variety of applications. For instance, it's used in the manufacture of Choke & Kill manifolds, which include Control Panel, Oil & Gas and Oil Exploration industries, Mud Manifolds, and Cement Manifolds, production of Mud / Gas Separators, fabrication pipes line terminations as well as Manifold Equipment for areas where high stress and pressure are to be expected. We also guarantee that our products are in line with the specifications of the industry as well as the specific demands of our customers. Our AISI 4130 tubes are offered in various thicknesses, sizes, and dimensions and customized specifications according to the requirements of our customers at competitive prices.

4130 Tubing suppliers, 4130 Round Tube, AISI 4130 Seamless Tube, SAE Gr 4130 Tube, 4130 Chromoly Steel Tubing, Alloy Steel 4130 Tube Supplier in India & SAE 4130

4130 Steel Tubing Specifications

Chrome Moly Tube Standard

Chrome Moly, SAE 4130, A519
01

4130 Tubes Specifications

SME/ANSI B16.9, ASME B16.28, MSS-SP-43
02

Dimensional specification

ANSI/ASME B36.19M, ANSI/ASME B36.10M
03

4130 Seamless Tube Size

1 / 2" NB - 16" NB
04

Outside Diameter

6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
05

AISI 4130 Tubes Manufacturing Shapes

Hydraulic, Round, Rectangle, Square, Hex, Honed
06

AISI 4130 Tube Manufacturing Techniques

Seamless / Fabricated / CDW / 100% X Ray Welded
07

AISI 4130 Tube Schedule Thickness Range

SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
08

4130 Tubes End Types

Plain End, Bevelled End, Threaded One End, TBE (Threaded Both Ends)
09

4130 Steel Equivalent

STANDARD WERKSTOFF NR. UNS AFNOR EN JIS BS GOST
AISI 4130 1.7218 G41300 - 25CrMo4 JIS G4105 BS 970 -

4130 Steel Tube Properties

AISI 4130 Ni C Mo Mn Si Fe Cu S P Cr
0.50 max 0.28-0.33 0.15-0.25 0.40-0.60 0.15-0.35 97.3-98.22 0.025 MAX 0.035 MAX 0.80-1.10

4130 Chromoly Tubing Strength

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
0.28 2580 460 MPa 560 MPa 20 %

Outside Diameter, OD (in mm) & Wall Thickness, WT (in mm) of AISI 4130 Tubes

Product Description Outside Diamter, OD (in mm) Wall Thickness, WT (in mm)>
AISI 4130 Round Tube 6mm – 630mm 0.5mm-30mm
AISI 4130 Square Tube 12.7mm* 12.7mm to 300mm* 300mm 0.5mm-30mm
AISI 4130 Rectangular Tube 10*20mm to 100*200mm 0.5mm-30mm
Seamless 4130 Alloy Steel Tubes 6mm to 630mm 0.5mm-30mm
Chrome Moly 4130 Tube 12.7mm to 76.2mm 0.5mm-2.0mm
AISI 4130 Tubing 12.7mm to 250mm 0.5mm-30mm
AISI 4130 Round Tube 12.7mm to 76.2mm 0.5mm-2.0mm
AISI 4130 Steel Tube 16mm to 85mm 0.5mm-3.0mm
AISI 4130 Alloy Steel Tube 13mm to 85mm 0.5mm-2.0mm
AISI 4130 Custom Tube 20mm to 200mm 0.5mm-2.0mm
4130 Thin-Wall AISI Tubes 22mm*0.7mm to 108mm*2.0mm 0.5mm-2.0mm
4130 Inner/Outside AISI Tubes 12.5mm to 203.2mm 1.0mm – 5mm
AISI 4130 Seamless Tubes 6mm to 430mm 0.8mm – 30mm
AISI 4130 Capillary Tubes 0.28mm to 10mm 0.08mm – 1.2mm

AISI 4130 Tubing Forms & Availability

Products Size
Chrome Moly 4130 Square Tube Chrome Moly 4130 High Pressure Tubing Sizes 3.35 mm OD To 101.6 mm OD
Chrome Moly 4130 Exhaust Tube Alloy Steel 4130 Flexible Tube
AISI 4130 Seamless Tube Chrome Moly 4130 Rectangular Tube
Chrome Moly 4130 Round Tube Chrome Moly 4130 Seamless Tubing
Alloy Steel 4130 Heat Exchanger Tubes AISI 4130 Custom Tubing
Chrome Moly 4130 Oval Tubes AISI 4130 Threaded Tube
Alloy Steel 4130 Seamless Tube AISI 4130 Custom Tubes
Chrome Moly 4130 Seamless Tubes Chrome Moly 4130 streamline tube
Chrome Moly 4130 Coiled Tubing 4130 Chrome Moly Tubing

Stock Availability of AISI 4130 Tubing

Products UNS DIN
AISI 4130 Seamless Tube UNS G41300 Seamless Tubes 1.7218 Seamless Tubing
AISI 4130 Round Tube UNS G41300 Round Tubes 1.7218 Round Tubing
AISI 4130 Custom Tube UNS G41300 Custom Tubes 1.7218 Custom Tubing

AISI 4130 Rectangular Pipes Weight

Size NPS Pipe O.D. Wall Thickness Pipe I.D. Weight per Foot Standard to XXHY Schedule
Pipe #
Section Modulus Gallon Capacity Per Linear Foot
1/2 0.84 0.109 0.622 0.85 STD 40 .0407 .0158
    0.147 0.546 1.09 XHY 80 .0478 .0122
    0.188 0.464 1.31   160 .0528 .0088
    0.294 0.252 1.72 XXHY   .0577 .0026
3/4 1.05 0.113 0.824 1.13 STD 40 .0705 .0277
    0.154 0.742 1.48 XHY 80 .0853 .0225
    0.219 0.612 1.95   160 .1006 .0153
    0.308 0.434 2.44 XXHY   .1103 .0077
1 1.315 0.133 1.049 1.68 STD 40 .1328 .0449
    0.179 0.957 2.17 XHY 80 .1606 .0374
    0.250 0.815 2.85   160 .1904 .0271
    0.358 0.599 3.66 XXHY   .2136 .0146
1 1/4 1.66 0.140 1.380 2.27 STD 40 .2346 .0777
    0.191 1.278 3.00 XHY 80 .2913 .0666
    0.250 1.160 3.77   160 .3421 .0549
    0.382 0.896 5.22     .4110 .0328
1 1/2 1.90 0.145 1.610 2.72 STD 40 .3262 .1058
    0.200 1.500 3.63 XHY 80 .4118 .0918
    0.281 1.338 4.86   160 .5079 .0730
    0.400 1.100 6.41     .5977 .0494
2 2.375 0.109 2.157 2.64   10 .4205 .1898
    0.154 2.067 3.66 STD 40 .5606 .1743
    0.218 1.939 5.03 XHY 80 .7309 .1534
    0.250 1.875 5.68     .8045 .1434
    0.281 1.813 6.29     .8666 .1344
    0.344 1.687 7.47   160 .9806 .1161
    0.436 1.503 9.04 XXHY   1.1043 .0922
2 1/2 2.875 0.120 2.635 3.53   10 .6870 .2833
    0.203 2.469 5.80 STD. 40 1.0640 .2487
    0.216 2.443 6.14     1.1169 .2435
    0.250 2.375 7.02     1.2468 .2301
    0.276 2.323 7.67 XHY 80 1.3386 .2202
    0.375 2.125 10.02   160 1.6371 .1842
    0.552 1.771 13.71 XXXHY   1.9971 .1280
3 3.50 0.120 3.260 4.34     1.0411 .4336
    0.156 3.188 5.58     1.3122 .4147
    0.172 3.156 6.12     1.4265 .4064
    0.188 3.124 6.66     1.5342 .3984
    0.216 3.068 7.58 STD. 40 1.7241 .3840
    0.250 3.000 8.69     1.9372 .3672
    0.281 2.938 9.67     2.1207 .3521
    0.300 2.900 10.26 XHY 80 2.2253 .3431
    0.438 2.624 14.34   160 2.8774 .2811
    0.600 2.300 18.6 XXHY   3.4243 .2158
3 1/2 4.0 0.120 3.760 4.98   10 1.3776 .5768
    0.226 3.548 9.12 STD. 140 2.3939 .5136
    0.250 3.500 10.02     2.6001 .4998
    0.281 3.438 11.17     2.8562 .4821
    0.318 3.364 12.52 XHY 80 3.1400 .4617
    0.636 2..728 22.87 XXHY   4.8795 .3085
4 4.5 0.120 4.260 5.62   10 1.7612 .7404
    0.156 4.188 7.24     2.2354 .7156
    0.188 4.124 8.67     2.6296 .6942
    0.203 4.094 9.32     2.8173 .6838
    0.219 4.062 10.02     3.0184 .6725
    0.237 4.026 10.80 STD. 40 3.2145 .6613
    0.250 4.000 11.36     3.3611 .6528
    0.281 3.938 12.67   60 3.7021 .6326
    0.312 3.876 13.97     4.0273 .6126
    0.337 3.826 15.00 XHY 80 4.2713 .5972
    0.438 3.624 19.02   120 5.1790 .5361
    0.531 3.438 22.53   160 5.8997 .4822
    0.674 3.152 27.57 XXHY   6.7927 .4054
5 5.563 0.188 5.187 10.80     4.1161 1.0979
    0.219 5.125 12.51     4.7279 1.0716
    0.258 5.047 14.63 STD. 40 5.4500 1.0391
    0.281 5.001 15.87     5.8644 1.0204
    0.312 4.939 17.51     6.4074 .99647
    0.344 4.875 19.19     6.9358 .9696
    0.375 4.813 20.80 XHY 80 7.4300 .9449
    0.500 4.563 27.06   120 9.2534 .8495
    0.625 4.313 32.99   160 10.7976 .7590
    0.750 4.063 38.59 XXHY   12.0954 .6734
6 6.625 0.109 6.407 7.59   5 3.5769 1.6748
    0.134 6.357 9.30   10 4.3475 1.6488
    0.156 6.313 10.79     5.0107 1.6260
    0.188 6.249 12.94     5.9351 1.5937
    0.203 6.219 13.94     6.3804 1.5780
    0.219 6.187 15.00     6.8261 1.5620
    0.250 6.125 17.04     7.6905 1.5306
    0.280 6.065 18.99 STD. 40 8.4958 1.5008
    0.312 6.001 21.06     9.3416 1.4688
    0.344 5.937 23.10     10.111 1.4391
    0.375 5.875 25.05     10.893 1.4082
    0.432 5.761 28.60 XHY 80 12.224 1.3541
    0.500 5.625 32.74     13.711 1.2909
    0.562 5.501 36.43   120 14.9806 1.2346
    0.625 5.375 40.09     16.1821 1.1787
    0.719 5.187 45.39   160 17.8243 1.0977
    0.864 4.897 53.21 XXHY   20.025 .9784
    1.000 4.625 60.13     21.7719 .8727
    1.125 4.375 66.14     23.1237 .7809

4130 Tubing Sizes

Sizes from .375” up to 4” OD.
Wall thicknesses from .032” up to .500”.
Non-standard random lengths from 17’ to 24’.

AISI 4130 Tubes

4130 seamless alloy steel tubing exporter in mumbai, 4130 chromoly steel tubing, 4130 round tube, 4130 chromoly square tubing, seamless chromoly 4130 tubing, 4130 seamless steel tubing, 4130 chromoly rectangular tubing, 4130 tubing supplier in india.

4130 Alloy Tubing

alloy steel 4130 seamless round tubing suppliers in mumbai, alloy steel 4130 tube, 4130 alloy steel seamless tubing, aisi 4130 tube suppliers in india, aisi 4130 tubing, 4130 alloy steel round tubing, 4130 alloy steel square tubing, 4130 tubes suppliers, astm a519 4130 chromoly tubing stock, chromoly 4130 tubing, aisi 4130 tubes, astm a519 aisi 4130 seamless tube

AISI 4130 Tubes

4130 Steel Applications

4130 Alloy Tubing in various Application Industries
  Air Preheater Unit
  Steam generating Boiler
  Power Generation
  Economiser
  Heat Exchangers
  Electric Power Plants
  Fossil Fuel Plants
  Water Supply Systems
  Waste Heat Plants
  Cogeneration Facilities



Searches Related to 4130 Alloy Steel Tube

4130 alloy steel tubing supplier in india, 4130 tube, aisi 4130 tubing suppliers, 4130 chromoly tubing suppliers near me, 4130 steel properties, 4130 alloy tubing stockists, aisi 4130 yield strength, aisi 4130 specification pdf, aisi 4130 seamless tubing, 4130 vs 4140, aisi 4130 equivalent material in indian standard, 4130 chromoly tubing price, supplies of 4130 steel tubing, 4130 tubing near me, 4130 chromoly tube supplier in mumbai, manufacturer of 4130 alloy tubing, aisi 4130 properties, 4130 tube suppliers



FAQ


AISI 4130 is a chromoly steel, also known as chrome moly steel. It's a medium-carbon, low-alloy steel popular for its balance of strength, toughness, and machinability.

Strength offers good tensile strength and yield strength, making it suitable for various load-bearing applications. Exhibits good impact resistance, allowing it to absorb energy under stress without breaking. It can be machined relatively easily compared to some high-alloy steels. It can also be welded using various techniques, but preheating and post-weld heat treatment might be required to minimize distortion and cracking. Heat treatability which responds well to heat treatment processes like quenching and tempering, allowing for customization of its mechanical properties.

AISI 4130 is available in various product forms including Plate, Sheet, Bar and Tube hollow sections with circular or square shapes.

Depending on your specific application requirements, some potential alternatives include AISI 1045 which is a lower-cost option with good strength but less hardenability and toughness compared to 4130 and 4140 Chromoly similar to 4130 but with slightly higher.
