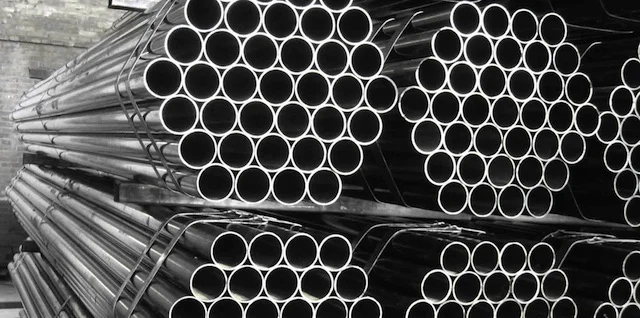

Name: Hastelloy C22 Tubes
Brand: Solitaire Overseas

Hastelloy C22 Tubes Manufacturer, Supplier and Exporter in India

Hastelloy C22 Tubes are preferable austenitic tungsten, molybdenum, chromium, and nickel stabilized alloy tubes with high resistance to the crevice, pitting, stress corrosion cracking. The greater content of chromium alloy is providing excellent resistance to oxidizing media and tungsten and molybdenum alloy is well resistant at reducing media. This alloy is having good resistance to the oxidizing aqueous media that is including a mixture that contains oxidizing acid with chlorine ion and wet chlorine. Hastelloy C22 alloy has a good resistant ability to acetic and formic acid, oxidizing acid chlorides, and other contaminated chemical solutions. This alloy is good at offering greater resistance to an environment where in the reducing, as well as oxidizing conditions, is encountered in the process streams.

Solitaire Overseas is one of the prominent manufacturers and suppliers of the very good quality of Hastelloy C22 Seamless Tubes. They cater to the needs and requirements of the esteem patrons are providing the tubes in standards specifications as well as in custom made specifications. A buyer can order for the tubes as per needs in different sizes, grades, specifications, wall thickness etc. To global and domestic patrons the tubes are supplied at reasonable rates only.

We offer a comprehensive range of high-performance Hastelloy Tubes, including Hastelloy C276 Tubes, Hastelloy B2 Tubes, and Hastelloy B3 Tubes. These specialized tubes are designed to withstand the harshest corrosive environments, making them essential components in critical industrial applications. This diverse selection ensures that Solitaire Overseas can provide tailored solutions for industries requiring the utmost reliability and longevity in their tubing systems

Hastelloy C22 Seamless Tubes

Hastelloy C22 Seamless Tubes offer superior corrosion resistance in harsh environments. Made from nickel-chromium-molybdenum alloy, their seamless design eliminates weak points, ensuring high integrity for demanding applications in chemical processing, pharmaceuticals, and pollution control.

Hastelloy Alloy C22 Welded Tubing

Fabricated from the versatile nickel-chromium-molybdenum alloy C22, these welded tubes offer robust resistance to a wide range of corrosive media, including strong acids and chlorides. Hastelloy Alloy C22 Welded Tubing offers cost-effective corrosion resistance. Using advanced welding, it's a reliable alternative to seamless tubes for chemical and industrial applications.

In order to add the effectiveness in the production of the Hastelloy Alloy C22 Welded Tubes, the industry is making use of high quality of alloy. The use of the latest technology and modern tools are also preferred to assure excellent quality of tubes manufacturing. There a team of well skilled, trained is hired that with valuable guidance are helping the industry in all possible way to deliver the best quality of tubes. Also, the quality control team is there that with sincere efforts is helping produce tube to maintain its quality.

Testing-
PMI test, hardness test, IGC test, mechanical test, chemical test, pitting resistant test, macro/micro test, flattening/flaring test, macro/micro tests are conducted for quality assurance.

Documents-
Quality assurance plan, heat treatment chart, packaging list, raw material test report, guarantee letter, material traceability report etc is provided to the buyers.

Packaging-
Alloy C22 Tubes are wrapped using environmentally poly bags and then packed into wooden cases/pallets/boxes for assuring safer and damage free shipping of the ordered product.

Hastelloy C22 Tubes Specifications

Specification

Specifications

ASTM B622, B626 / ASME SB622, SB626

Dimensions

ASTM, ASME and API

Tubes Size

6 mm OD x 0.7 mm to 50.8 mm OD x 3 mm thk.

Schedule

SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type :

Seamless / ERW / Welded / Fabricated / LSAW Tubes

Form :

Round, Square, Rectangular, Hydraulic Etc

Length :

Single Random, Double Random & Cut Length.

End

Plain End, Beveled End, Treaded

Alloy C22 Tubes Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Hastelloy C22	2.4602	N06022	NW 6022	-	-	-	NiCr21Mo14W

Hastelloy Alloy C22 Tubes Chemical Composition

Element	Alloy C22
C	0.010 max
Mn	0.50 max
Si	0.08 max
S	0.02 max
Co	2.50 max
Ni	50.015 min*
Cr	20.00 – 22.50
Fe	2.00 – 6.00
Mo	12.50 – 14.50
P	12.50 – 14.50

Hastelloy C22 Tubing Mechanical & Physical Properties

Element	Hastelloy Alloy C22
Density	8.69 g/cm3
Melting Point	1399 °C (2550 °F)
Tensile Strength	Psi – 1,00,000 , MPa – 690
Yield Strength (0.2%Offset)	Psi – 45000 , MPa – 310
Elongation	45 %

C22 Hastelloy Tube Application

Hastelloy Alloy C22 Tubes in various Application Industries

Food Processing Industry

Fabrication Industry

Oil and Gas Industry

Chemical Industry

Plumbing

General Purpose Applications

Heating

Water Supply Systems

Power Plant

Paper & Pulp Industry

FAQ

What is C22 material grade?

Hastelloy C22 (UNS N06022) is a nickel-chromium-molybdenum alloy known for excellent corrosion resistance in diverse environments, resisting pitting, crevice corrosion, and stress cracking.

What is the difference between C22 and C276 Hastelloy?

The primary difference between Hastelloy C22 and C276 lies in their temperature tolerance. C276 handles significantly higher temperatures, up to 1900°F, compared to C22's 1250°F, making C276 better for high-heat applications.

What temperature is Hastelloy C22?

Hastelloy C22's practical sustained service limit is around 1250°F (676°C). Exceeding this can affect its corrosion resistance. The melting point is approximately 2500°F (1371°C).

How thick is Hastelloy C22?

Hastelloy C22 comes in various thicknesses, from thin sheets to thick plates, and in pipe schedules. Thickness depends on application requirements and industry standards.
