Monel K500 Pipes Supplier | ASTM B165 UNS N05500

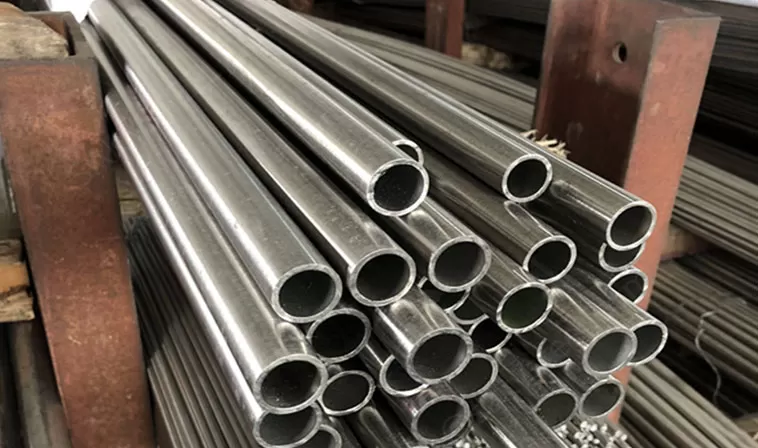

Monel K500 Pipe Supplier and Exporter
Solitaire Overseas is a leading manufacturer and supplier of Monel K500 Pipe, a high-performance nickel-copper alloy that offers the same exceptional corrosion resistance as Monel 400 but with significantly higher strength and hardness. As a trusted Monel Pipes Supplier & Exporter, our inventory includes best-selling Monel K500 Seamless Pipes, Monel K500 Welded Pipes, and ERW variants engineered to meet the demanding requirements of offshore, marine, oil & gas, and chemical processing industries.
We supply ASTM B165 and ASME SB165 compliant UNS N05500 Monel K500 Pipes, along with ASTM B163 Monel K500 Tubes, manufactured in accordance with ASTM, ASME, API, and NACE standards for sour service applications, with a size range extending from 15NB to 150NB, wall thicknesses from 0.6 mm to 20 mm, and outer diameters from 6.35 mm to 254 mm.
To meet diverse project specifications, our Monel K500 Pipe is available in single random, double random, and custom cut lengths with end configurations including plain, beveled, and threaded ends across seamless, ERW, welded, and fabricated types. If you also require flanges or fittings in this alloy, see our Monel K500 Flanges and Monel K500 Pipe Fittings pages. We provide complete mill test certificates (MTC), third-party inspection reports, and export documentation upon request. Contact us today for the latest price list and technical support for Monel Pipes in India and global markets.
Table of Contents
- Monel K500 Pipe Supplier and Exporter Overview
- What Is Monel K500 Pipes (UNS N05500)
- Monel K500 Pipe Specification
- Types of Monel K500 Pipes
- ASME SB165 Monel K500 Pipes Equivalent Grades
- K500 Monel Round Pipe Chemical Composition
- Mechanical Properties of K500 Monel Pipes
- UNS N05500 Tubing Schedule Chart
- Size Schedule Chart of K500 Monel Seamless Pipe
- Sizes of ASME SB165 Monel Welded Tube
- Pressure of Alloy UNS N05500 Hollow Pipe
- Nickel, Copper / ASTM B-165 or Equivalent
- Maximum Allowable Working Pressure (Bar) For Metric Sizes
- Applications by Industry for Monel K500 Pipes
- Price of ASTM B163 Monel K500 Welded Tubes
- Weight of Monel K500 Schedule 40 Pipe
- Frequently Asked Questions
What Is Monel K500 Pipes (UNS N05500)?
Monel K500 (UNS N05500) is a precipitation-hardenable nickel-copper alloy that is uniquely non-magnetic and spark-resistant. The addition of aluminum (2.3–3.15%) and titanium (0.35–0.85%) to the base Monel 400 composition enables age hardening, making it ideal for submarine components, marine shafts, pump shafts, valve trim, cable wraps, and sensitive instrumentation. The age-hardening process results in significantly higher mechanical strength, approximately three times the yield strength of Monel 400. Consequently, Monel K500 Seamless Pipes are widely used in high-stress applications such as heat exchangers, downhole tubing, and hydraulic systems. The alloy composition typically includes 63% Nickel and 27–33% Copper, allowing Monel K500 pipes to achieve a minimum yield strength of 790 MPa and a tensile strength of 1100 MPa. With a melting point of approximately 1350°C, these pipes perform reliably under extreme thermal and corrosive environments.
Monel K500 Pipe Specification
| Property | Details |
|---|---|
| Specifications | ASTM B163 / ASME SB163 (Seamless Tubes), ASTM B165 / ASME SB165 (Seamless Pipes), ASTM B725 / ASME SB725 (Welded Pipes) |
| ASME / ASTM Equivalent | ASME SB165 equivalent to ASTM B165 for seamless nickel-copper alloy pipe |
| Dimensions | ASTM, ASME, API, NACE MR0175 |
| Size | 15" NB to 150" NB in |
| Specialized in | Large Diameter Size |
| Range | 6.35 mm OD up to 254 mm OD in 0.6 to 20 mm thickness |
| Type | Seamless / ERW / Welded / Fabricated |
| Form | Round, Hydraulic Etc. |
| Length | Single Random, Double Random & Cut Length |
| End | Plain End, Beveled End, Threaded |
Types of Monel K500 Pipes
UNS N05500 Monel K500 Boiler Tube
Nickel Copper Alloy K500 EFW Tube

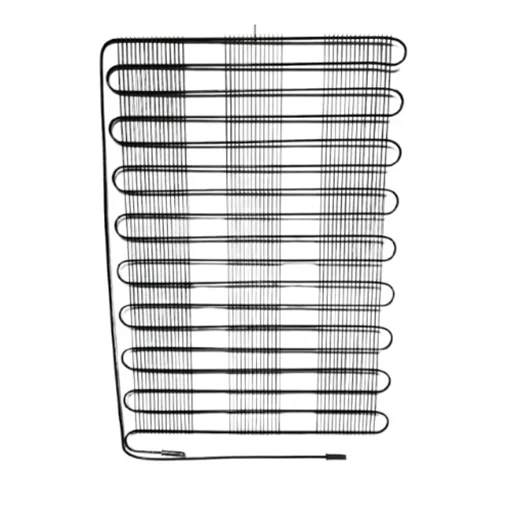

Nickel Copper Alloy K500 Condenser Tube

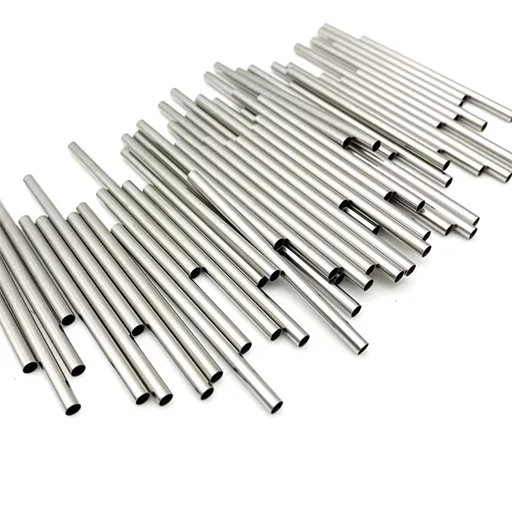

Nickel Alloy K500 Capillary Tube
Monel K500 Welded Tube
Monel K500 Steel Precision Tubes
Monel K500 Steel Gas Tube

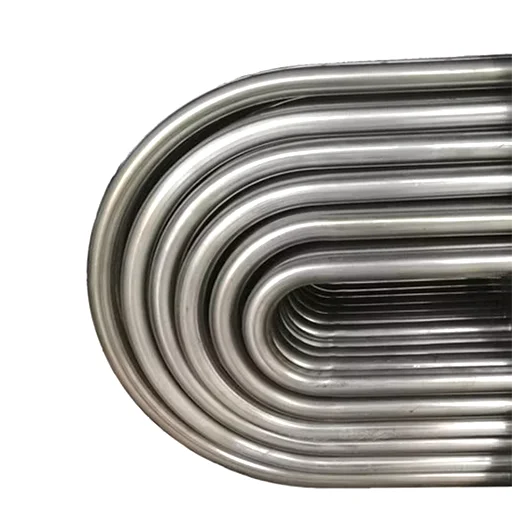

Monel K500 Nickel Heat Exchanger Tube
Monel Grade K500 Schedule 40S Seamless Tube
Monel Alloy K500 Round Tube

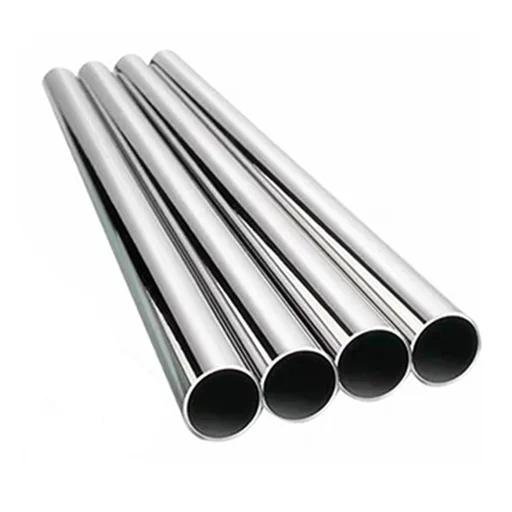

Grade Monel K500 Polished Tube
ASTM B163 UNS N05500 Monel Seamless Tube
ASME SB 163 UNS N05500 Monel Square Tube
Alloy Monel K500 Exhaust Tubing
Alloy K500 Monel Rectangular Tube
Alloy K500 Monel 2.4375 Schedule 5S Tube

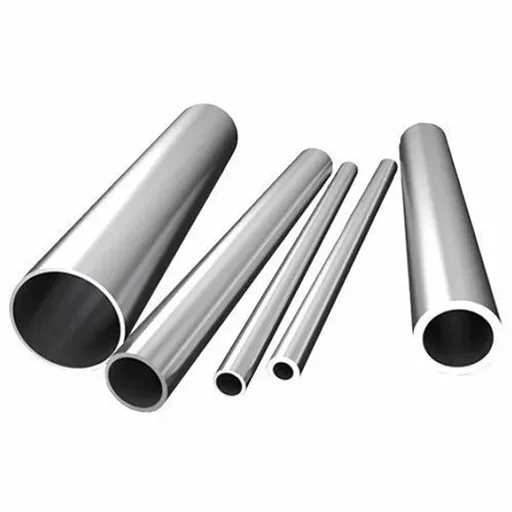

Alloy K500 ERW Tube

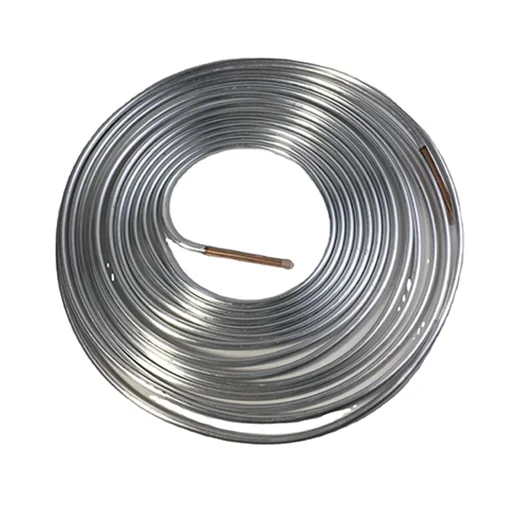

Alloy K500 Coiled Tube
2.4375 Alloy K500 SCH 40 Seamless Tube
2.4375 Alloy K500 Instrument Tubing
Request a Quote for Monel K500 Pipes
Need ASTM B165 / ASME SB165 Monel K500 Pipes for your offshore, marine, or oil & gas project?
Solitaire Overseas offers competitive pricing, fast delivery, and full MTC documentation. Contact us today for bulk discounts and export quotations in INR, USD, and AED.
Contact Us Now View All Monel Products Monel Pipes Supplier & ExporterASME SB165 Monel K500 Pipes Equivalent Grades
| Standard | UNS | Werkstoff Nr. |
|---|---|---|
| Monel K500 | N05500 | 2.4375 |
K500 Monel Round Pipe Chemical Composition (UNS N05500)
The chemical composition of Monel K500 (UNS N05500) is detailed below. For general information on the Monel alloy family, visit our Nickel Alloy Pipes Supplier & Exporter page.
| Grade | Ni | C | Al | Mn | Si | Fe | Cu | S | Ti |
|---|---|---|---|---|---|---|---|---|---|
| Monel K500 | 63.0 min | 0.25 max | 2.3–3.15 | 1.5 max | 0.5 max | 0.5–2 | 27.0–33.0 | 0.010 max | 0.35–0.85 |
Mechanical Properties of K500 Monel Pipes
| Density | Melting Point | Yield Strength (0.2% Offset) | Tensile Strength | Elongation |
|---|---|---|---|---|
| 8.44 g/cm³ | 1350 °C (2460 °F) | Psi - 1,15,000 / MPa - 790 | Psi - 1,60,000 / MPa - 1100 | 20 % |
UNS N05500 Tubing Schedule Chart
| Size | Schedule | Size | Schedule |
|---|---|---|---|
|
1/8" IPS (.405" O.D.) |
SCH 40, 80 |
3 1/2" IPS (4.000" O.D.) |
SCH 10, 40, 80, 160, XXH |
|
1/4" IPS (.540" O.D.) |
SCH 10, 40, 80 |
4" IPS (4.500" O.D.) |
SCH 10, 40, 80, 160, XXH |
|
3/8" IPS (.675" O.D.) |
SCH 10, 40, 80 |
5" IPS (5.563" O.D.) |
SCH 10, 40, 80, 160, XXH |
|
1/2" IPS (.840" O.D.) |
SCH 5, 10, 40, 80, 160, XXH |
6" IPS (6.625" O.D.) |
SCH 5, 10, 40, 80, 120, 160, XXH |
|
3/4" IPS (1.050" O.D.) |
SCH 10, 40, 80, 160, XXH |
8" IPS (8.625" O.D.) |
SCH 5, 10, 40, 80, 120, 160, XXH |
|
1" IPS (1.315" O.D.) |
SCH 5, 10, 40, 80, 160, XXH |
10" IPS (10.750" O.D.) |
SCH 10, 20, 40, 80 (.500), TRUE 80 (.500) |
|
1-1/4" IPS (1.660" O.D.) |
SCH 10, 40, 80, 160, XXH |
12" IPS (12.750" O.D.) |
SCH 10, 20, 40 (.375), TRUE40 (.406), SCH80 (.500) |
|
1-1/2" IPS (1.900" O.D.) |
SCH 10, 40, 80, 160, XXH |
14" IPS (14.000" O.D.) |
SCH10 (.188), SCH40 (.375) |
|
2" IPS (2.375" O.D.) |
SCH 10, 40, 80, 160, XXH |
16" IPS (16.000" O.D.) |
SCH10 (.188), SCH40 (.375) |
|
2 1/2" IPS (2.875" O.D.) |
SCH 10, 40, 80, 160, XXH |
18" IPS (18.000" O.D.) |
SCH-40 (.375) |
|
3" IPS (3.500" O.D.) |
SCH 5, 10, 40, 80, 160, XXH |
Size Schedule Chart of K500 Monel Seamless Pipe (ASTM B165)
WT = wall thickness, OD = Outside Diameter, ID = Inside Diameter
| OD (mm) | WT (mm) | Size (in.) | Sch | Kg/m |
|---|---|---|---|---|
|
13.72 |
1.65 |
1/4 |
10S |
0.50 |
|
13.72 |
2.24 |
1/4 |
40S |
0.64 |
|
13.72 |
3.02 |
1/4 |
80S |
0.81 |
|
17.15 |
1.65 |
3/8 |
10S |
0.64 |
|
17.15 |
2.31 |
3/8 |
40S |
0.86 |
|
17.15 |
3.20 |
3/8 |
80S |
1.12 |
|
21.34 |
2.11 |
1/2 |
10S |
1.02 |
|
21.34 |
2.77 |
1/2 |
40S |
1.29 |
|
21.34 |
3.73 |
1/2 |
80S |
1.65 |
|
26.67 |
2.11 |
3/4 |
10S |
1.30 |
|
26.67 |
2.87 |
3/4 |
40S |
1.71 |
|
26.67 |
3.91 |
3/4 |
80S |
2.23 |
|
33.40 |
2.77 |
1 |
10S |
2.13 |
|
33.40 |
3.38 |
1 |
40S |
2.54 |
|
33.40 |
4.55 |
1 |
80S |
3.29 |
|
33.40 |
6.35 |
1 |
160 |
4.30 |
|
42.16 |
2.77 |
1¼ |
10S |
2.73 |
|
42.16 |
3.56 |
1¼ |
40S |
3.44 |
|
42.16 |
4.85 |
1¼ |
80S |
4.53 |
|
42.16 |
6.35 |
1¼ |
160 |
5.69 |
|
48.26 |
2.77 |
1½ |
10S |
3.16 |
|
48.26 |
3.68 |
1½ |
40S |
4.11 |
|
48.26 |
5.08 |
1½ |
80S |
5.49 |
|
60.33 |
2.77 |
2 |
10S |
3.99 |
|
60.33 |
3.91 |
2 |
40S |
5.52 |
|
60.33 |
5.54 |
2 |
80S |
7.60 |
|
60.33 |
8.74 |
2 |
160 |
11.29 |
|
73.03 |
3.05 |
2½ |
10S |
5.35 |
|
73.03 |
5.16 |
2½ |
40S |
8.77 |
|
73.03 |
7.01 |
2½ |
80S |
11.59 |
|
88.90 |
3.05 |
3 |
10S |
6.56 |
|
88.90 |
5.49 |
3 |
40S |
11.47 |
|
88.90 |
7.62 |
3 |
80S |
15.51 |
|
88.90 |
11.13 |
3 |
160 |
21.67 |
|
101.60 |
3.05 |
3½ |
10S |
7.53 |
|
101.60 |
5.74 |
3½ |
40S |
13.78 |
|
101.60 |
8.08 |
3½ |
80S |
18.92 |
|
114.30 |
3.05 |
4 |
10S |
8.50 |
|
114.30 |
6.02 |
4 |
40S |
16.32 |
|
114.30 |
8.56 |
4 |
80S |
22.67 |
|
114.30 |
13.49 |
4 |
160 |
34.05 |
|
141.30 |
6.55 |
5 |
40S |
22.10 |
|
141.30 |
9.53 |
5 |
80S |
31.44 |
|
141.30 |
15.88 |
5 |
160 |
49.87 |
|
168.28 |
3.4 |
6 |
10S |
14.04 |
|
168.28 |
7.11 |
6 |
40S |
28.69 |
|
168.28 |
10.97 |
6 |
80S |
43.21 |
|
168.28 |
14.27 |
6 |
120 |
54.75 |
|
168.28 |
18.26 |
6 |
160 |
68.59 |
|
219.08 |
8.18 |
8 |
40S |
43.20 |
|
219.08 |
12.7 |
8 |
80S |
65.63 |
|
219.08 |
18.23 |
8 |
120 |
91.30 |
|
219.08 |
23.01 |
8 |
160 |
112.97 |
Sizes of ASME SB165 Monel Welded Tube
| Wall Thickness | Monel Tube Sizes (O.D.) |
|---|---|
| .010 | 1/16", 1/8", 3/16" |
| .012 | 1/8" |
| .016 | 1/8", 3/16" |
| .020 | 1/16", 1/8", 3/16", 1/4", 5/16", 3/8" |
| .028 | 1/8", 3/16", 1/4", 5/16", 3/8", 1/2", 3/4", 1", 1 1/2", 2" |
| .035 | 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 16", 5/8", 3/4", 7/8", 1", 1 1/4", 1 1/2", 1 5/8", 2", 2 1/4" |
| .049 | 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1 1/8", 1 1/4", 1 1/2", 1 5/8", 2", 2 1/4" |
| .065 | 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1 1/4", 1 1/2", 1 5/8", 1 3/4", 2", 2 1/2", 3" |
| .083 | 1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1 1/4", 1 1/2", 1 5/8", 1 7/8", 2", 2 1/2", 3" |
| .095 | 1/2", 5/8", 1", 1 1/4", 1 1/2", 2" |
| .109 | 1/2", 3/4", 1", 1 1/4", 1 1/2", 2" |
| .120 | 1/2", 5/8", 3/4", 7/8", 1", 1 1/4", 1 1/2", 2", 2 1/4", 2 1/2", 3" |
| .125 | 3/4", 1", 1 1/4", 1 1/2", 2", 3", 3 1/4" |
| .134 | 1" |
| .250 | 3" |
| .375 | 3 1/2" |
Pressure of Alloy UNS N05500 Hollow Pipe: Working Pressure (psig)
| Pipe O.D. (in.) | .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 |
|---|---|---|---|---|---|---|---|---|
| 1/8 | 7900 | 10100 | - | - | - | - | - | - |
| 1/4 | 3700 | 4800 | 7000 | 9500 | - | - | - | - |
| 5/16 | - | 3700 | 5400 | 7300 | - | - | - | - |
| 3/8 | - | 3100 | 4400 | 6100 | - | - | - | - |
| 1/2 | - | 2300 | 3200 | 4400 | - | - | - | - |
| 3/4 | - | - | 2200 | 3000 | 4000 | 4600 | - | - |
| 1 | - | - | - | 2200 | 2900 | 3400 | 3900 | 4300 |
Nickel, Copper / ASTM B-165 or Equivalent - Maximum Allowable Working Pressure (Psi) For Fractional Sizes
| Pipe OD | .010 | .012 | .016 | .020 | .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1/16 |
6,422 |
7,872 |
10,768 |
13,484 |
- |
- |
- |
- |
- |
- |
- |
- |
|
1/8 |
- |
- |
- |
- |
6,422 |
9,325 |
11,823 |
- |
- |
- |
- |
- |
|
3/16 |
- |
- |
- |
- |
4,081 |
5,935 |
7,630 |
11,005 |
- |
- |
- |
- |
|
1/4 |
- |
- |
- |
- |
- |
4,305 |
5,518 |
8,053 |
10,946 |
- |
- |
- |
|
3/8 |
- |
- |
- |
- |
- |
- |
3,530 |
5,107 |
7,029 |
- |
- |
- |
|
1/2 |
- |
- |
- |
- |
- |
- |
2,595 |
3,721 |
5,078 |
6,699 |
- |
- |
|
5/8 |
- |
- |
- |
- |
- |
- |
2,051 |
2,927 |
3,970 |
5,200 |
6,056 |
- |
|
3/4 |
- |
- |
- |
- |
- |
- |
1,696 |
2,412 |
3,259 |
4,249 |
4,933 |
5,755 |
|
7/8 |
- |
- |
- |
- |
- |
- |
1,446 |
2,051 |
2,764 |
3,592 |
4,161 |
4,842 |
|
1 |
- |
- |
- |
- |
- |
- |
5,040 |
7,140 |
9,595 |
12,445 |
14,390 |
16,715 |
Maximum Allowable Working Pressure (Bar) For Metric Sizes
| Pipe OD | 0.5 | 0.6 | 0.7 | 0.8 | 1.0 | 1.2 | 1.5 | 1.6 | 1.8 | 2.0 | 2.2 | 2.5 | 3.0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3 |
464 |
567 |
672 |
775 |
965 |
- |
- |
- |
- |
- |
- |
- |
- |
|
4 |
335 |
411 |
491 |
567 |
723 |
873 |
- |
- |
- |
- |
- |
- |
- |
|
6 |
- |
- |
- |
- |
310 |
360 |
464 |
567 |
723 |
775 |
- |
- |
- |
|
8 |
- |
- |
- |
- |
227 |
262 |
335 |
411 |
528 |
567 |
- |
- |
- |
|
10 |
- |
- |
- |
- |
- |
- |
206 |
262 |
320 |
411 |
442 |
- |
- |
|
12 |
- |
- |
- |
- |
- |
- |
169 |
215 |
262 |
335 |
360 |
411 |
464 |
|
14 |
- |
- |
- |
- |
- |
- |
- |
182 |
222 |
282 |
303 |
345 |
389 |
|
16 |
- |
- |
- |
- |
- |
- |
- |
158 |
192 |
244 |
262 |
298 |
335 |
|
18 |
- |
- |
- |
- |
- |
- |
- |
140 |
169 |
215 |
230 |
262 |
294 |
|
22 |
- |
- |
- |
- |
- |
- |
- |
113 |
137 |
173 |
186 |
211 |
236 |
|
25 |
- |
- |
- |
- |
- |
- |
- |
99 |
120 |
152 |
162 |
184 |
206 |
Applications by Industry for Monel K500 Pipes
Monel K500 Seamless Pipes are particularly valued in sour service environments where conventional carbon steel pipes may suffer stress corrosion cracking due to H2S exposure and elevated temperatures. For related nickel alloy solutions, explore our Nickel Alloy Pipes Supplier & Exporter range or learn more through our blog: What is Monel Alloy - Everything You Need to Know.
- Petrochemical Industry
- Oil and Gas Industry
- Chemical Industry
- Power Plant Industry
- Energy Industry
- Pharmaceuticals Industry
- Pulp & Paper Industry
- Food Processing Industry
- Aerospace Industry
- Refining Industry
Weight of Monel K500 Schedule 40 Pipe
| NPS | OD (in) | OD (mm) | WT (in) | WT (mm) | Schedule | kg/Mtr | Lb/ft |
|---|---|---|---|---|---|---|---|
|
1/2" |
0.840 |
21 |
0.109 |
2.769 |
40 STD |
1.268 |
0.851 |
|
0.147 |
3.734 |
80 STD |
1.621 |
1.088 |
|||
|
3/4" |
1.050 |
27 |
0.113 |
2.870 |
40 STD |
1.684 |
1.131 |
|
0.154 |
3.912 |
80 STD |
2.195 |
1.474 |
|||
|
1" |
1.315 |
33 |
0.133 |
3.378 |
40 STD |
2.501 |
1.679 |
|
0.179 |
4.547 |
80 STD |
3.325 |
2.172 |
|||
|
1 1/4" |
1.660 |
42 |
0.140 |
3.556 |
40 STD |
3.385 |
2.273 |
|
0.191 |
4.851 |
80 STD |
4.464 |
2.997 |
|||
|
1 1/2" |
1.900 |
48 |
0.145 |
3.683 |
40 STD |
4.048 |
2.718 |
|
0.200 |
5.080 |
80 STD |
5.409 |
3.361 |
|||
|
2" |
2.375 |
60 |
0.154 |
3.912 |
40 STD |
5.441 |
3.653 |
|
0.218 |
5.537 |
80 STD |
7.480 |
5.022 |
|||
|
2 1/2" |
2.875 |
73 |
0.203 |
5.516 |
40 STD |
8.629 |
5.793 |
|
0.276 |
7.010 |
80 STD |
11.411 |
7.661 |
|||
|
3" |
3.500 |
89 |
0.216 |
5.486 |
40 STD |
11.284 |
7.576 |
|
0.300 |
7.620 |
80 STD |
15.272 |
10.253 |
|||
|
4" |
4.500 |
114 |
0.237 |
6.020 |
- |
16.073 |
10.790 |
|
0.337 |
8.560 |
- |
22.318 |
14.983 |
|||
|
6" |
6.625 |
168 |
0.280 |
7.112 |
40 STD |
58.263 |
18.974 |
|
0.432 |
10.973 |
80 XHY |
42.561 |
28.573 |
|||
|
8" |
8.625 |
219 |
0.322 |
8.179 |
40 |
42.352 |
28.554 |
|
0.500 |
12.700 |
80 XHY |
64.627 |
43.388 |
|||
|
10" |
10.750 |
273 |
0.365 |
9.271 |
40 STD |
63.301 |
40.483 |
|
0.500 |
12.700 |
60 XHY |
81.530 |
54.735 |
|||
|
12" |
12.750 |
324 |
0.375 |
9.525 |
- |
73.824 |
49.562 |
|
0.500 |
12.700 |
- |
97.438 |
65.415 |
Frequently Asked Questions
Monel K500 pipe is a UNS N05500 nickel-copper alloy pipe strengthened by aluminum and titanium additions. It provides corrosion resistance similar to Monel 400 with higher strength and hardness after age hardening.
Monel K500 seamless pipes are commonly supplied to ASTM B165 and ASME SB165. Monel K500 seamless tubes are supplied to ASTM B163 / ASME SB163, and welded pipe options can be supplied to ASTM B725 / ASME SB725.
UNS N05500 is the Unified Numbering System designation for Monel K500, an age-hardenable nickel-copper alloy also identified by Werkstoff number 2.4375.
Monel K500 has a similar nickel-copper base to Monel 400, but aluminum and titanium additions allow precipitation hardening. This gives K500 much higher yield strength and hardness while retaining excellent seawater corrosion resistance.
Yes. Solitaire Overseas can supply Monel K500 pipes with MTC, heat number traceability, PMI reports, third-party inspection reports, packing lists, certificates of origin, and export documentation as required.
Get Your Monel K500 Pipe Quote Today
Solitaire Overseas supplies ASTM B165 / ASME SB165 Monel K500 Pipes globally from India with full mill test certifications, third-party inspection, and export documentation. Available in seamless, welded, and ERW forms across all standard schedules.
Request a Quote
